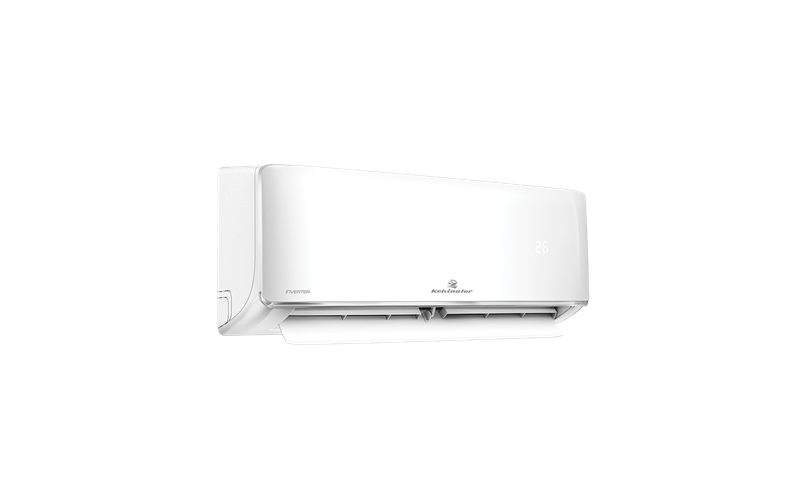

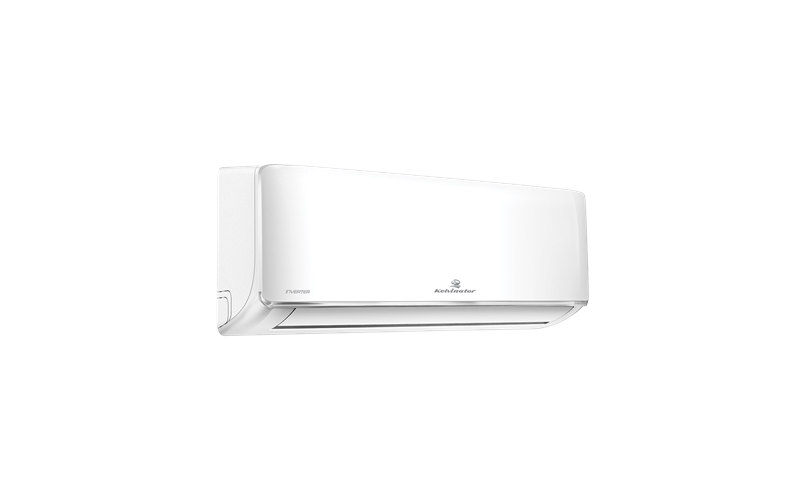

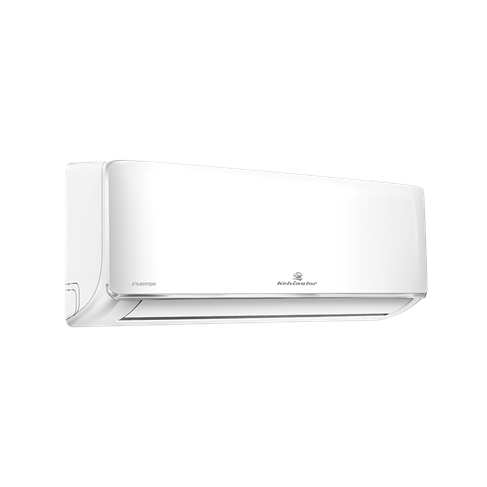

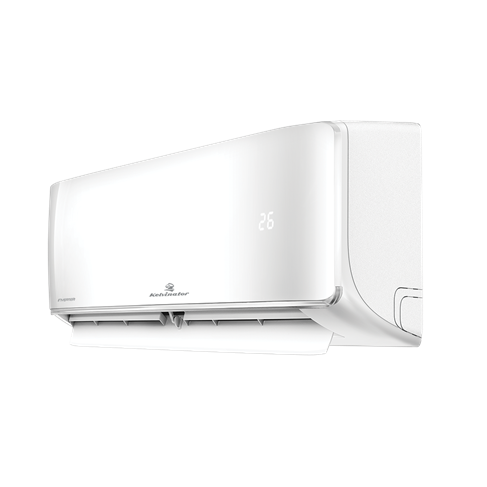

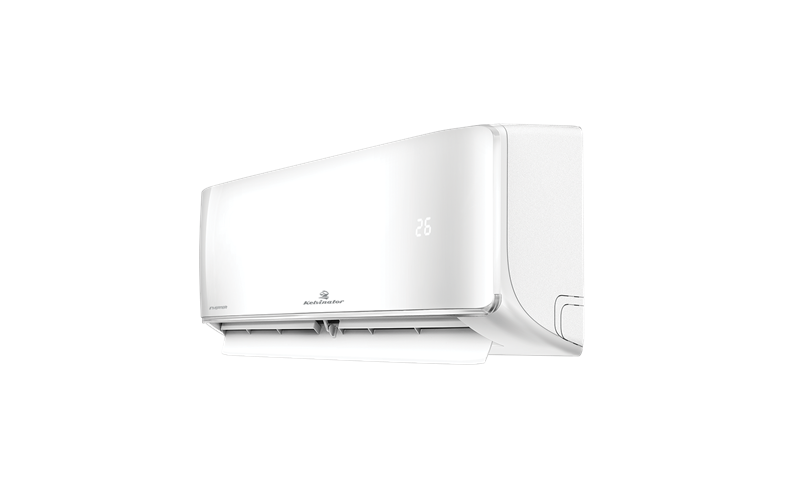

KSD90HRH

9.0kW Reverse cycle split system air conditioner

Split System Inverter Reverse Cycle air conditioner, DC fan motor with 12 fan speeds, concealed dimmable digital display, HEPA and ion filters, auto swing (up, down), LCD remote, DRED capable 9.0kW cooling/10.0kW heating capacity & with 2.5 Energy Star Rating

Key Features

  • Heating and cooling modes of operation
  • Auto or Manual operation

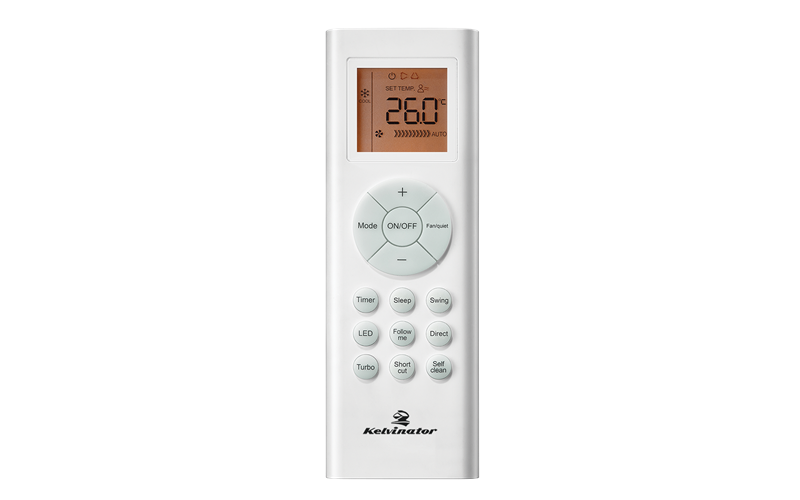

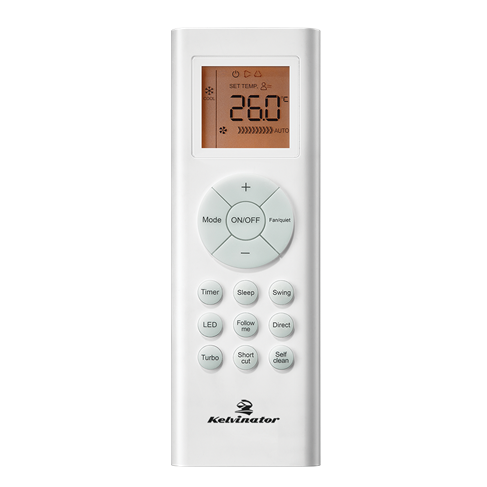

  • LCD backlit wireless remote control
  • Follow Me command
  • 24 hour timer
  • Auto restart
  • Inverter compressor technology
  • Up to 5 year comprehensive residential warranty
  • Auto Air Swing
PRODUCT PROFILE
Domestic warranty details (yrs)
5
Type
reverse cycle
SPECIFICATIONS
Nominal horsepower
4
Capacity cool watts
9000
Capacity cool Btu/h
30700
Capacity Heat watts
10000
Capacity Heat Btu/h
34100
Current rating amps
19.5
Indoor sound pressure dBA high setting
55
Indoor sound pressure dBA low setting
33
Outdoor sound pressure dBA
63
Outdoor Sound Power dBA
67.4
Indoor air circulation max (ltr/s)
377
Ambient temperature range minimum
-15
Ambient temperature range maximum
50
Moisture removal ltr/hour
3.0
New Energy star rating cooling
2.5
New Energy star rating heating
2.5

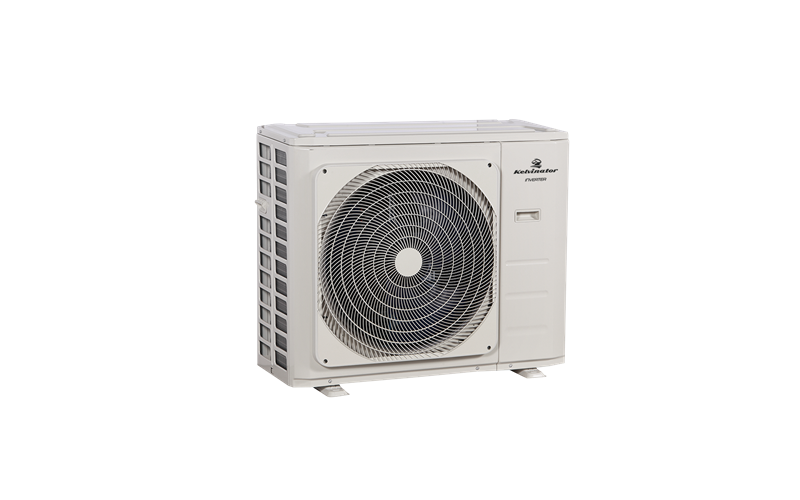

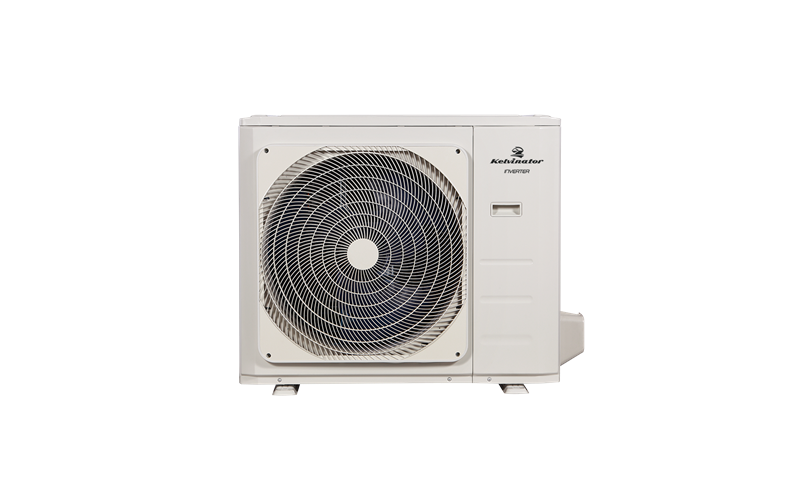

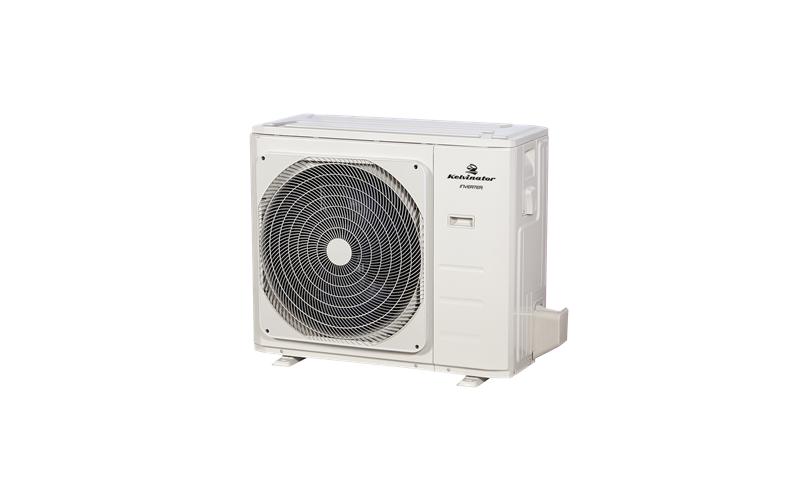

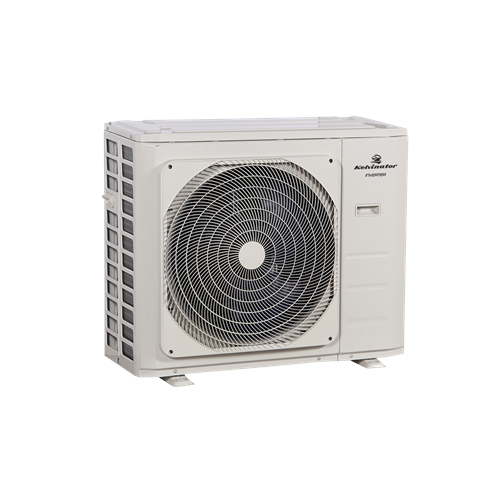

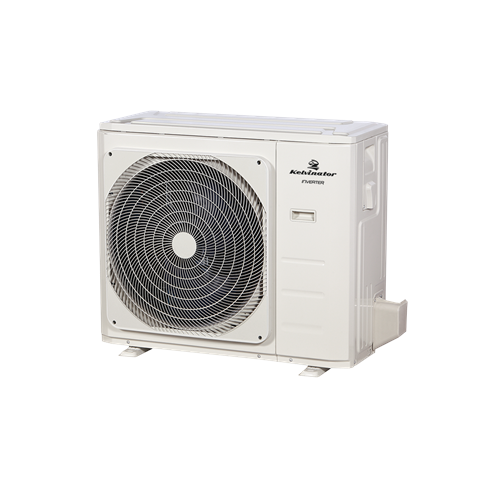

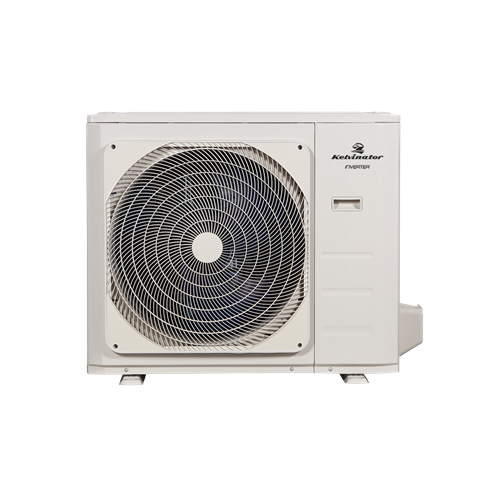

OUTDOOR UNIT DIMENSIONS
Width (mm)
1040
Height (mm)
810
Depth (mm)
455

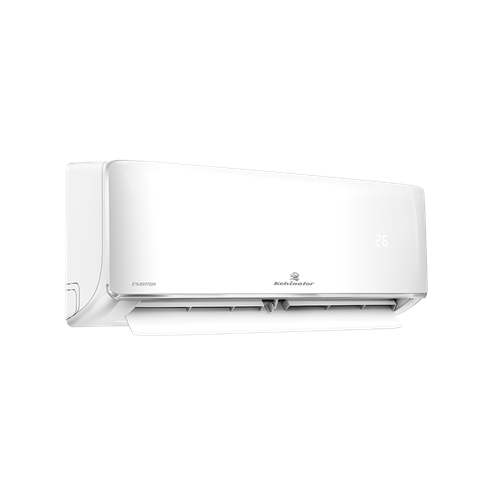

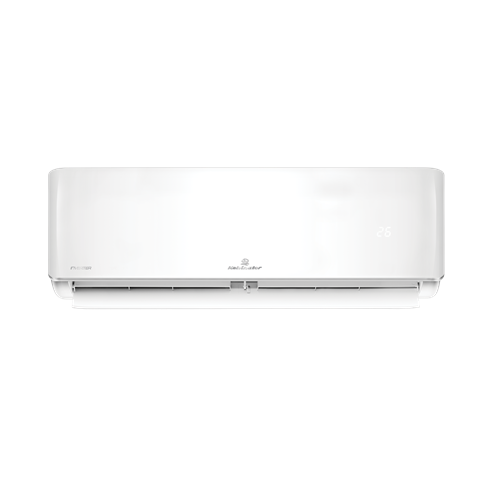

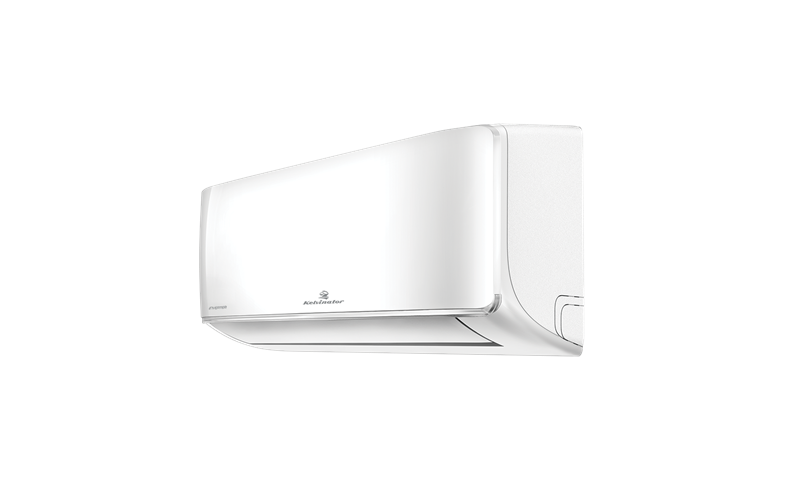

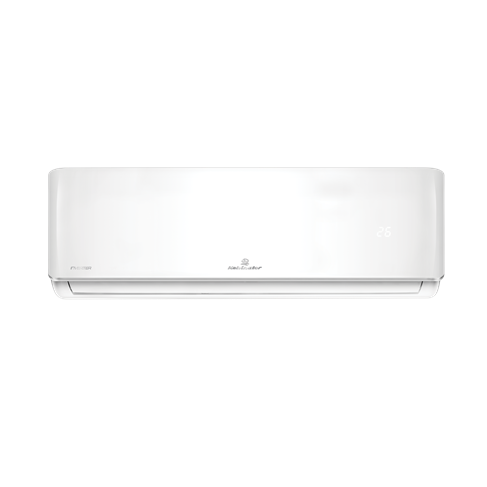

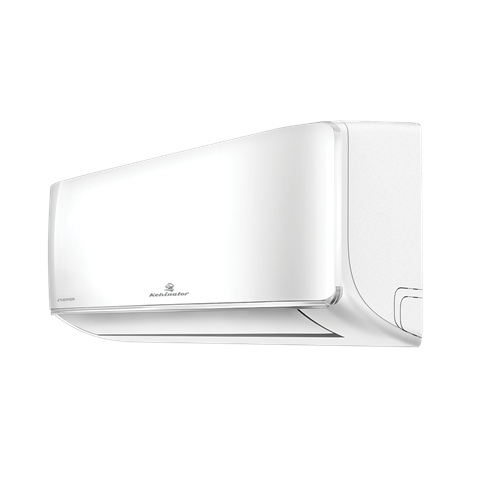

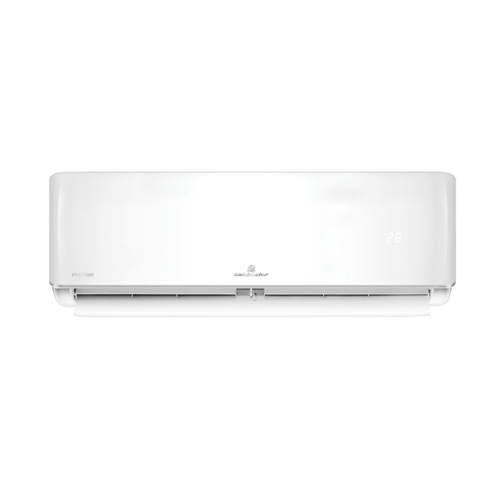

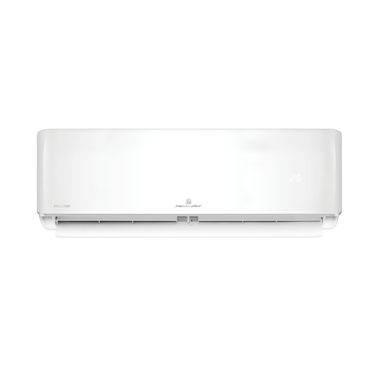

INDOOR UNIT DIMENSIONS
Total width (mm)
1259
Total height (mm)
362
Total depth (mm)
282
