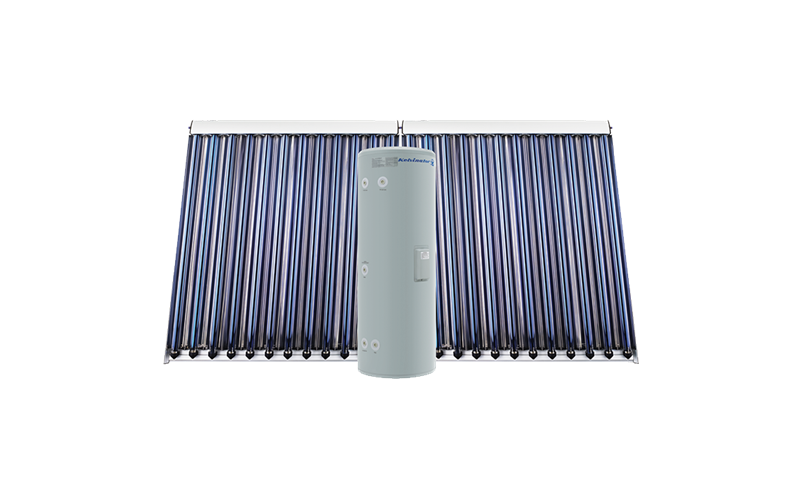

KSE270E2B
Evacuated Tube Solar Hot Water System 270L Tank
Solar Electric Boosted Hot Water System with 270L storage tank, 3.6kW backup element and 2 evacuated tube panels
Key Features
- High performance evacuated tube collectors
- 270L capacity
- 3.6kW electric boost element
- Frost protection down to -15°C
- Sacrificial Anode for rust protection
- Fittings supplied for standard solar installation
PRODUCT PROFILE
- Domestic warranty details
- Cylinder & Solar Panel: 5 years parts, 3 years labour, All other components: 1 year parts and labour
- Type
- Solar Electric Boosted Evacuated Tubes
- Design family (eline)
- SolarKnight
GENERAL SPECIFICATIONS
- Product color
- Grey and Aluminium
- No of people in household
- 2 to 4
- Installation location
- Outdoor
- Suited for frost prone areas
- Down to -15°C
- Power Supply (V)
- 220-240V/50Hz
- Current Supply (A)
- 15
TANK SPECIFICATIONS
- Tank Delivery capacity (L)
- 250
- Tank Storage capacity (L)
- 270
- Tank Water Connection inlet and outlet ("/mm)
- RP ¾" / 20mm
SOLAR COLLECTOR SPECIFICATION
- Collector Type
- Evacuated tubes
- Number of Collectors
- 2
- Number of Tubes
- 24
- Roof area required (m2)
- 4.6
- Solar Frame color
- Aluminium
- Frame material
- Anodised aluminium
- Glass type
- Borosilicate glass
- Absorber surface type
- Aluminium nitrite selective surface
- Collector working pressure (kPa)
- 1000
