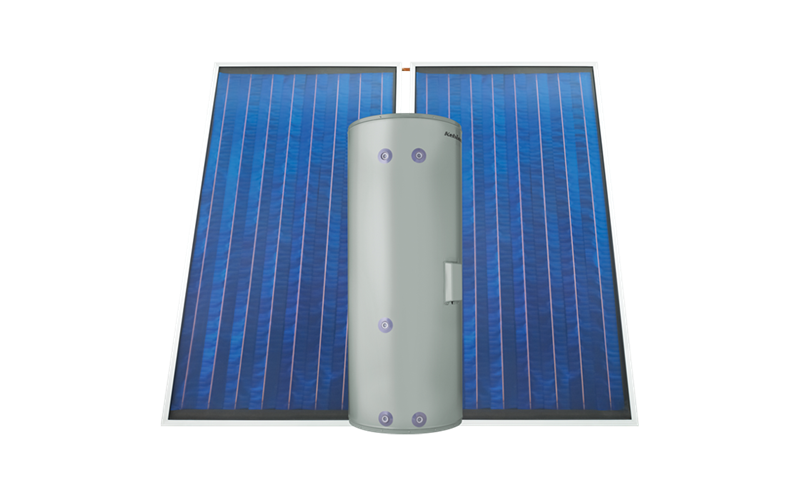

KSE340F2A
SolarKnight 340
Solar Electric Boosted Hot Water System with 340L storage tank including backup element and 2 flat panels with TiNOx coating.
Key Features
- TiNox selective surface flat panels
- Electric boost element
- Frost protection down to -5°C
- Sacrificial Anode for rust protection
- Fittings supplied for standard solar installation
PRODUCT PROFILE
- Domestic warranty details
- cylinder 5 years, collector 5 years, all other parts 1 year
- Type
- Solar Electric Boosted Flat Panel
- Design family (eline)
- SolarKnight
GENERAL SPECIFICATIONS
- Product color
- Grey and Aluminium
- No of people in household
- 3 to 5
- Installation location
- Outdoor
- Suited for frost prone areas
- Down to -5ºC
- Power Supply (V)
- 220-240V/50HZ
- Current Supply (A)
- 15
TANK SPECIFICATIONS
- Tank Delivery capacity (L)
- 315
- Tank Storage capacity (L)
- 340
- Tank Water Connection inlet and outlet ("/mm)
- RP ¾/20
SOLAR COLLECTOR SPECIFICATION
- Collector Type
- Flat Panel
- Number of Collectors
- 2
- Roof area required (m2)
- 4.1
- Solar Frame color
- Aluminium
- Frame material
- Anodised aluminium
- Glass type
- tempered low-iron solar glass 4mm thick
- Absorber surface type
- TiNox selective absorbing coating
- Collector working pressure (kPa)
- 1000
