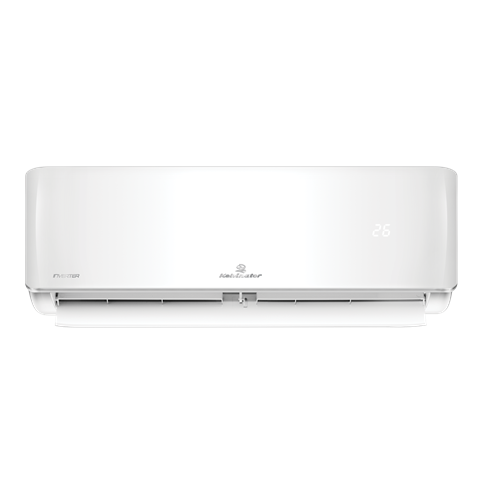

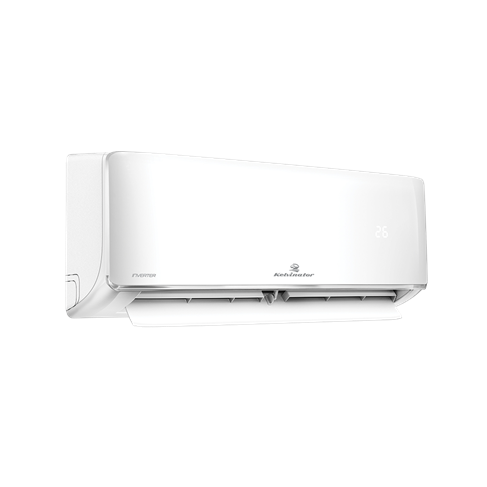

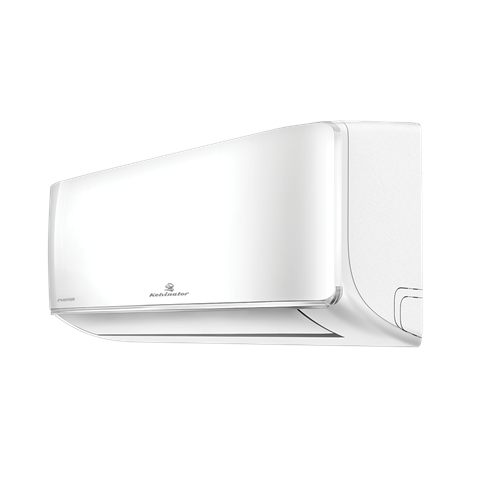

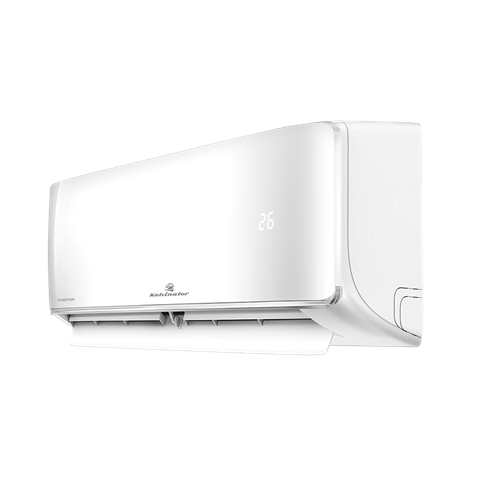

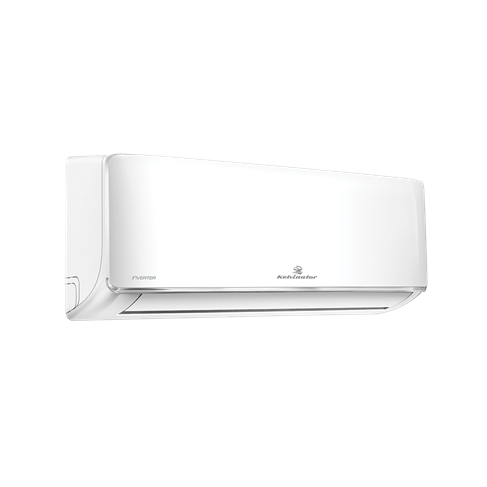

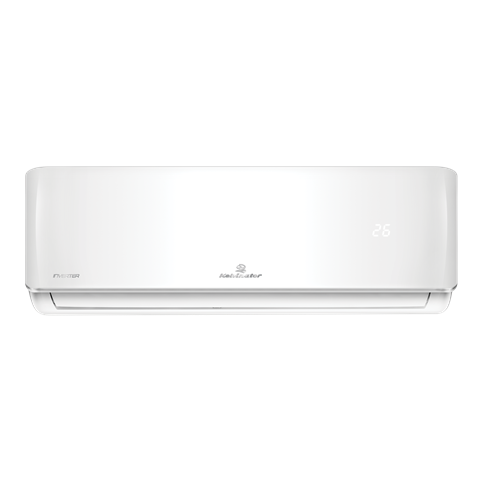

KSD50HWH

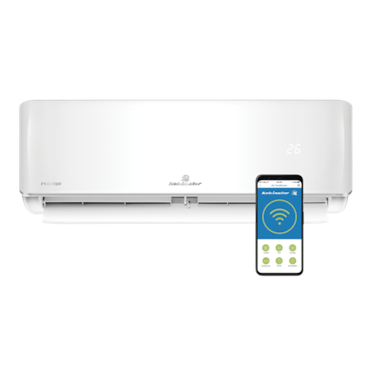

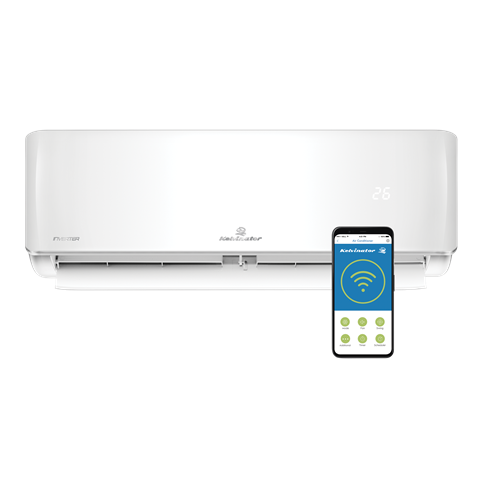

5.0kW Reverse cycle split system with wireless connectivity

Split System Inverter Reverse Cycle air conditioner with wireless connectivity, DC fan motor with 12 fan speeds, concealed dimmable digital display, HEPA and ion filters, auto swing (up, down), LCD remote, DRED capable. 5.0kW cooling/6.0kW heating capacity & with 3.5 Energy Star Rating

Where to buy

Key Benefits

Comfort & convenience at the touch of your hands

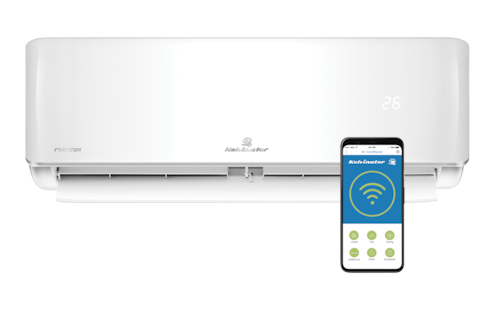

Kelvinator Connect allows you to be smarter with your heating and cooling needs from any location with your smart device via the Kelvinator Home Comfort App. At your convenience, turn the unit on or off, change temperatures, control modes and adapt fan speeds to best meet your comfort needs.

Key Benefits

Peace of mind

The additional Bio-HEPA and ion filtration is the ideal way to purify, sterilise and deodorise the air in your living areas

Key Benefits

Superior comfort and control

With DC inverter technology you’ll enjoy greater comfort, control and energy efficiency all year round

Key Benefits

Easy to use

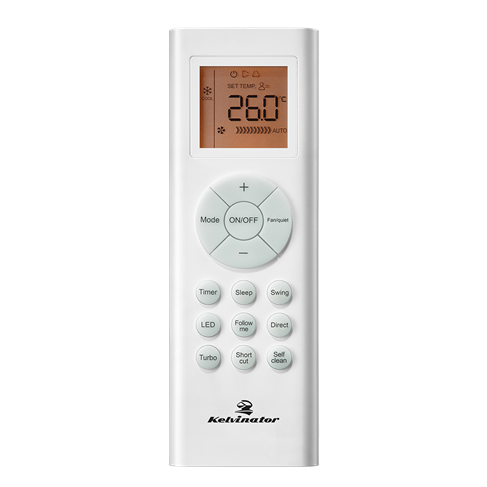

One touch climate control is at your fingertips with a simple-to-use remote control

Key Benefits

Easy to clean

The contemporary clean-face fascia not only looks good, it also minimises dust build-up on the front of the unit. Slim and compact, these air-conditioners are unobtrusive and will suit any interior style

Key Features

  • Kelvinator Connect
  • Heating and cooling modes of operation
  • Auto or Manual operation
  • LCD backlit wireless remote control
  • Follow Me command
  • 24 hour timer
  • Auto restart
  • Inverter compressor technology
  • Up to 5 year comprehensive residential warranty
PRODUCT PROFILE
Domestic warranty details (yrs)
5
Type
reverse cycle
SPECIFICATIONS
Nominal horsepower
2.0
Capacity cool watts
5000
Capacity cool Btu/h
17100
Capacity Heat watts
6000
Capacity Heat Btu/h
20500
Current rating amps
15.5
Indoor sound pressure dBA high setting
49
Indoor sound pressure dBA low setting
32
Outdoor sound pressure dBA
60
Outdoor Sound Power dBA
64
Indoor air circulation max (ltr/s)
333
Ambient temperature range minimum
-15
Ambient temperature range maximum
50
Moisture removal ltr/hour
1.9
Energy star rating cooling
3.5
Energy star rating heating
3.5
Heating COP
4.0
Refrigerant weight (g)
1450
Refrigerant type
R32

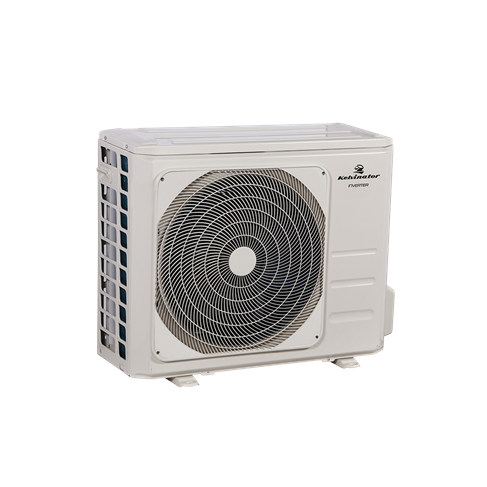

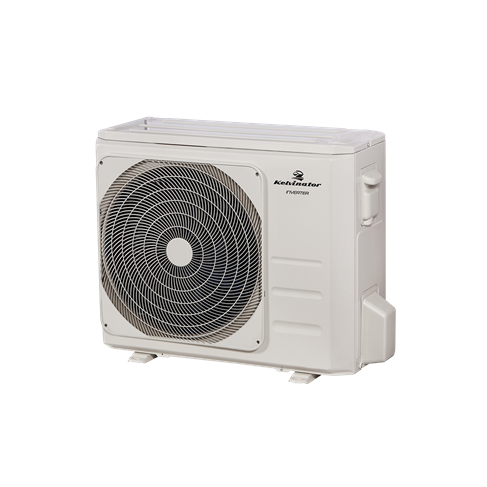

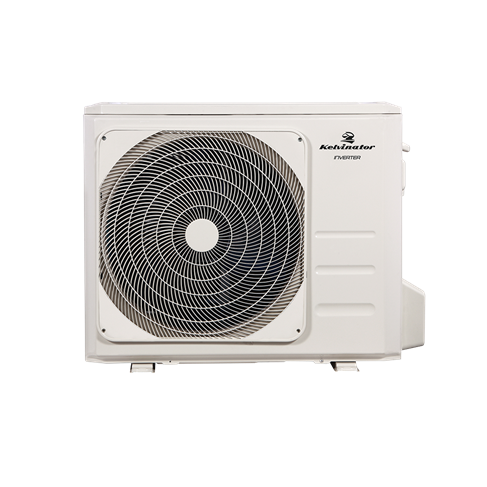

OUTDOOR UNIT DIMENSIONS
Width (mm)
924
Height (mm)
702
Depth (mm)
382
INDOOR UNIT DIMENSIONS
Total width (mm)
1080
Total height (mm)
335
Total depth (mm)
226
